| 性能参数表 | |||||||
| Slewing Drive Performance Data | |||||||

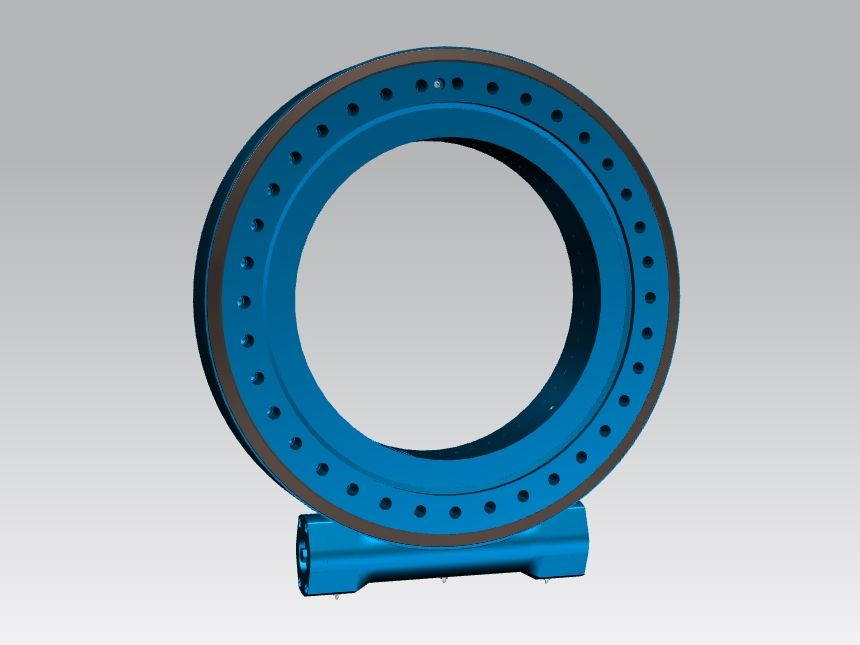

| Model No. WEA25 | |||||||
| Output Torque | Tilting Moment Torque | Holding Torque | Axial Load | Radial Load | Gear Ratio | Precision | Weight |
| 输出扭矩 | 倾覆力矩 | 保持力矩 | 轴向载荷 | 径向载荷 | 减速比 | 精度 | 重量 |
| 34.2 KN.M | 310 KN.M | 160 KN.M | 2400 KN | 950 KN | 104:1 | ≤0.1° | 200 KG |
| 25240 LBF.FT | 229*10m³ LBF.FT | 118*10m³ LBF.FT | 540*10m³ LBF | 213.6*10m³ LBF | |||
Besides standard slewing bearings and slewing drives, Honza Bearing also provides processing of machine tool parts and non-standard mechanical parts.
